1200mm DIY RC Plane Balsa Kit J3 Cub
1200mm DIY RC Plane Balsa Kit J3 Cub
SPECIFICATIONS
Aerial Photography: No
Anti-wind Ability: n/a
Brand Name: FLIIT
Camera Mount Type: Other
Charging Time: 3-4h
Charging Voltage: 12v
Control Channels: 4 channels
Controller Battery: 12V (not included)
Controller Mode: MODE1,MODE2
Dimensions: 100cm-150cm
Drone Weight: n/a
Features: Other
Flight Time: <5
High-concerned chemical: None
Indoor/Outdoor Use: Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Wood,Carbon Fiber,Metal,Plastic
Model Number: DBRGK03
Operator Skill Level: Intermediate,expert
Origin: Mainland China
Package Includes: Operating Instructions
Plugs Type: not included
Power Source: Electric
Recommend Age: 14+y
Remote Control: Yes
Remote Distance: 500 meters
State of Assembly: Unassembled Kit
Takeoff Weight: n/a
Transit Time (Days): n/a
Type: Airplane
Video Capture Resolution: Other
Warning: Small parts, choking harzard!
Warranty: n/a
The cowl is a little wider than the normal design. It is not that like original design, but it is much easier for you to replace the battery.
Main Specifications of 1200mm DIY RC Plane Balsa Kit J3 Cub:
Wingspan: 1225mm
Fuselage Length:798mm
==========================================
Recommended Devices (Not included):
Radio Control: 2.4Ghz 4 channel or equivalent (click here for Radio Control)
Motor: 2212-1400kv Brushless Motor
Propeller: 9 inch propeller
ESC: 30A Brushless ESC
Servo: 9g servo x 4 pcs
Lipo Battery: 11.1V 1500~2200mAh 20C Lipo Battery (click here for battery)
Charger: 3s Balance Charger (Click here for charger)
=========================================================================================

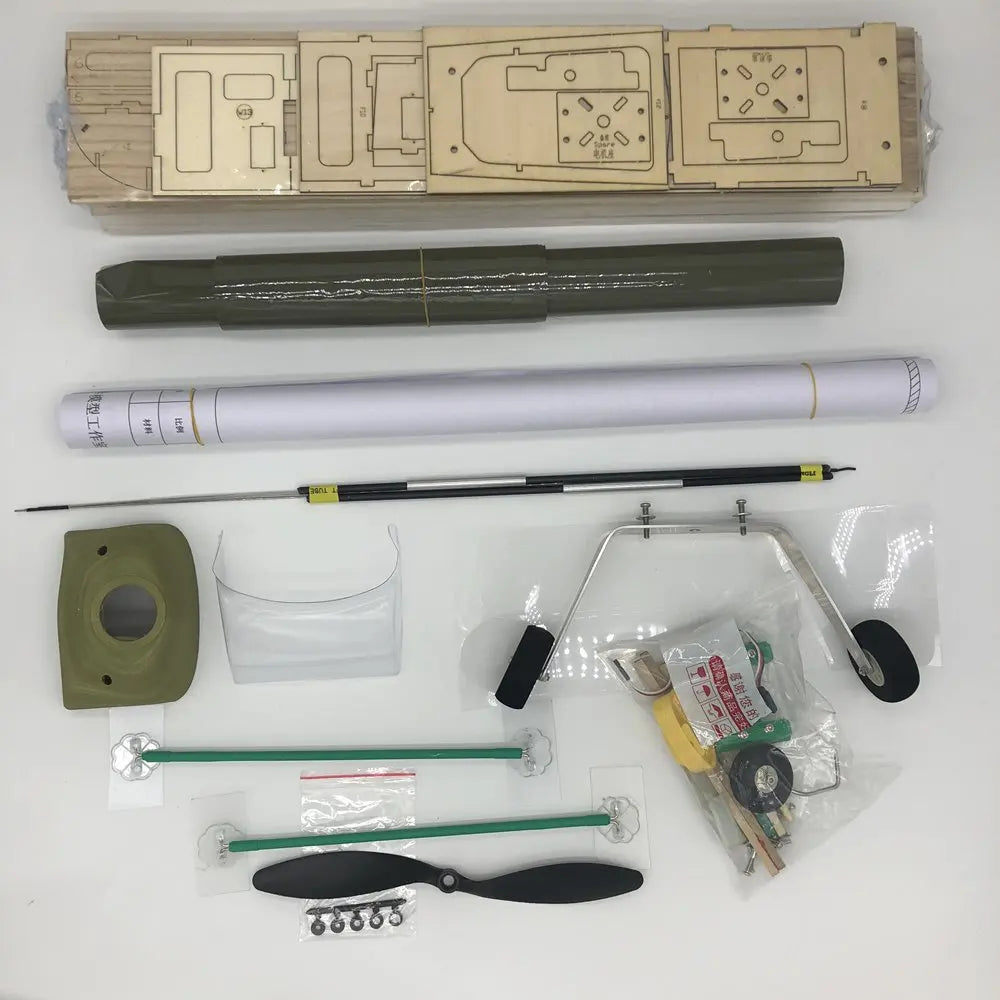

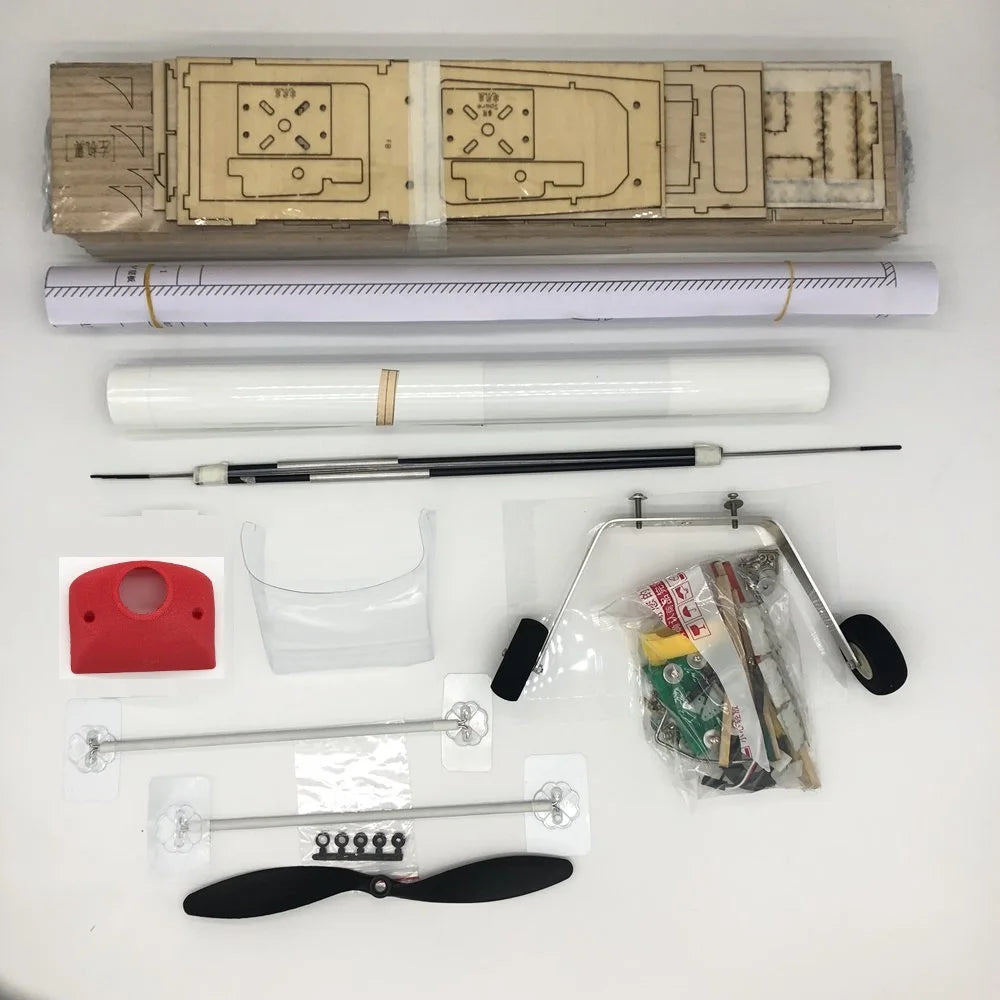

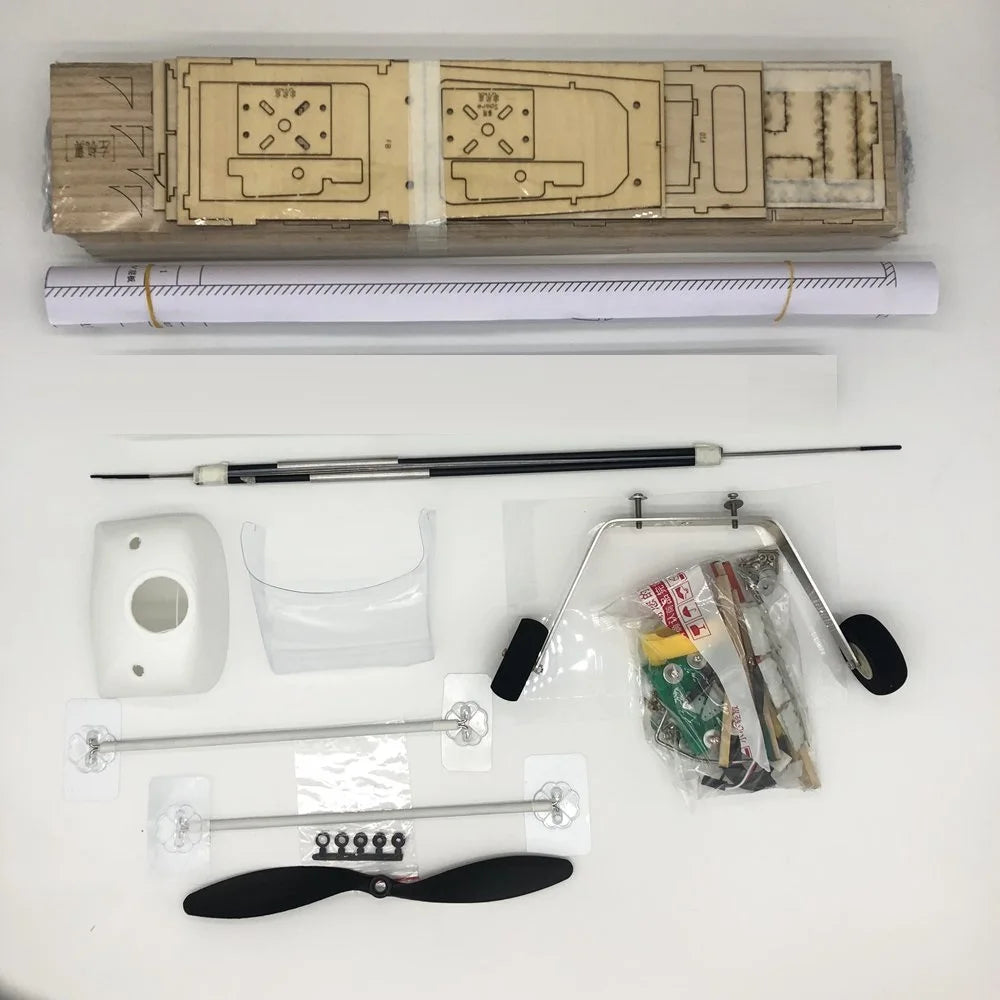

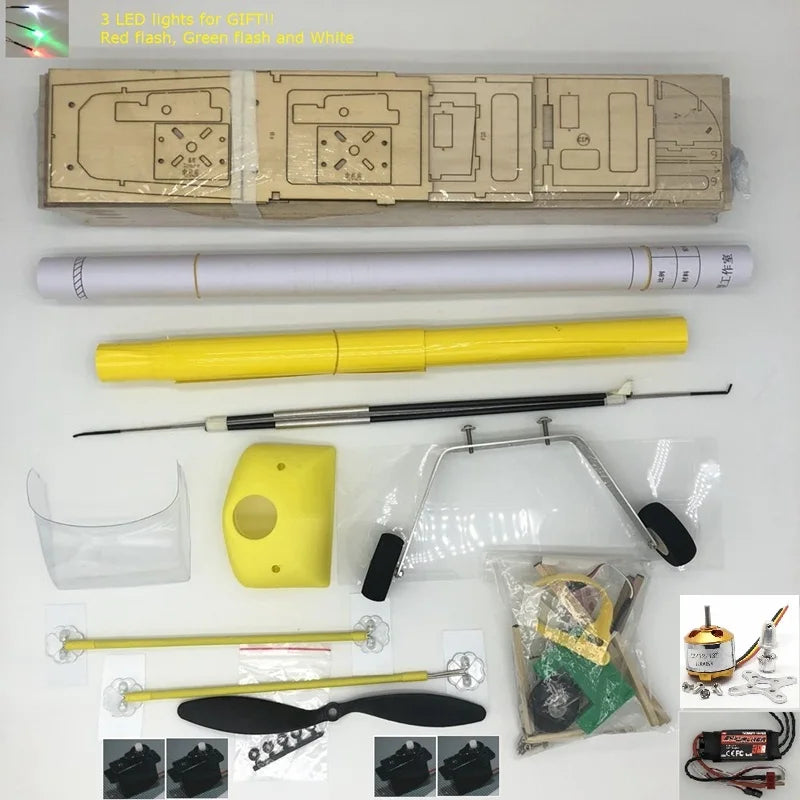

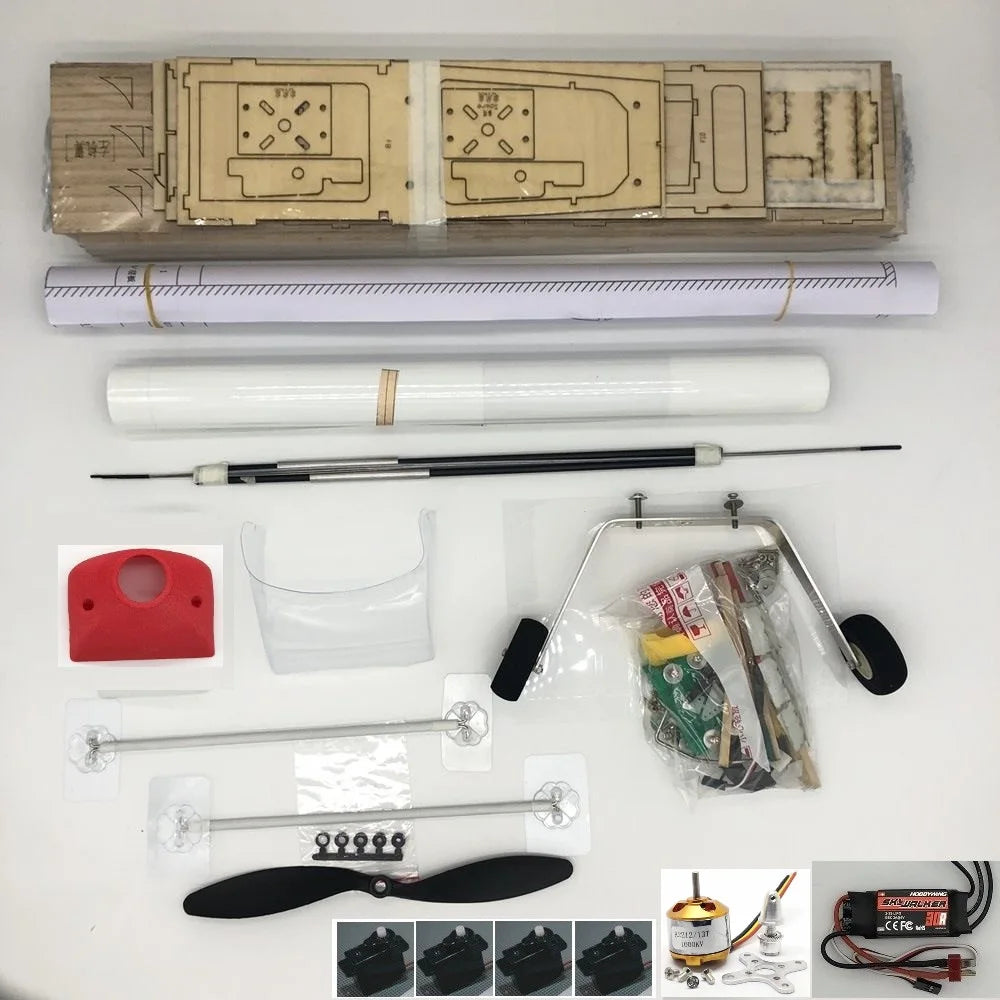

Pls note that this is unaseembled plane, which comes with following parts:
All Wood Parts of the Plane (Unassembled)
1:1 Drawing of the wing
1 Set of hinges
1 Set of push rods
1 Set of clear canopy
1 set of landing gear

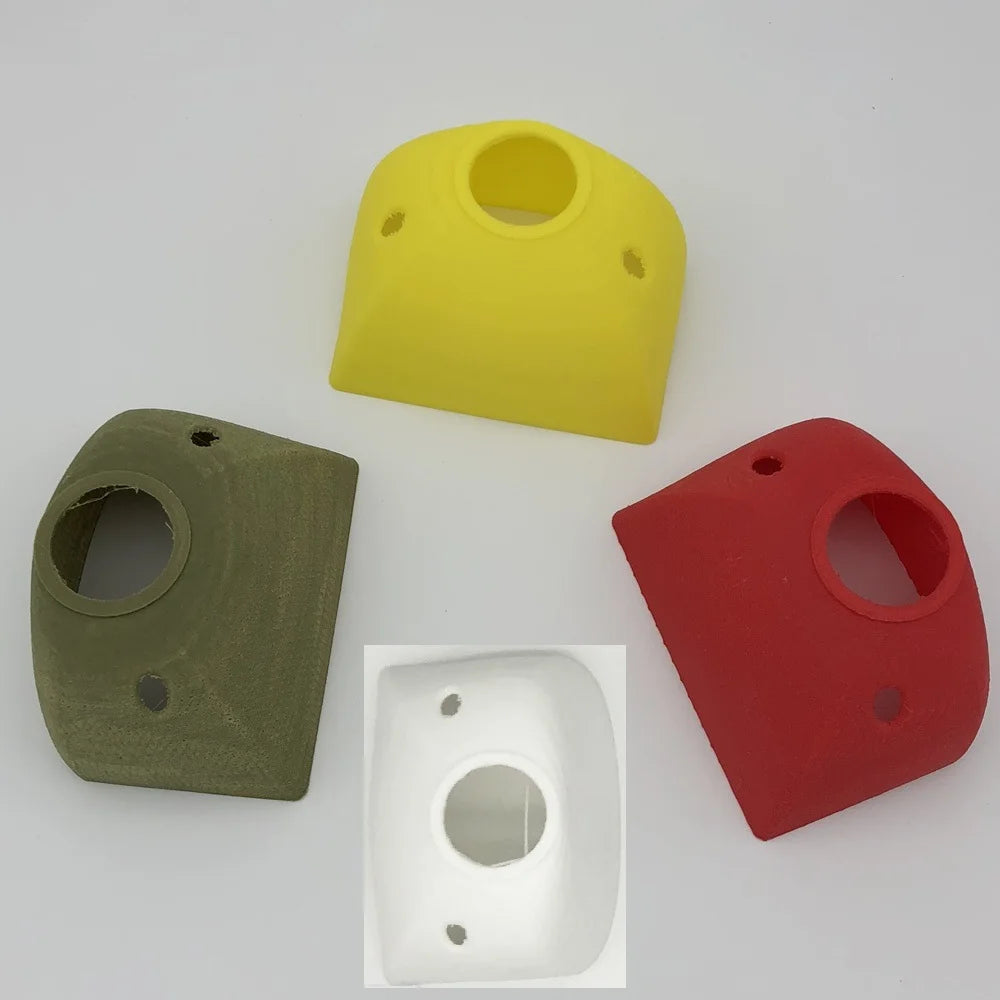

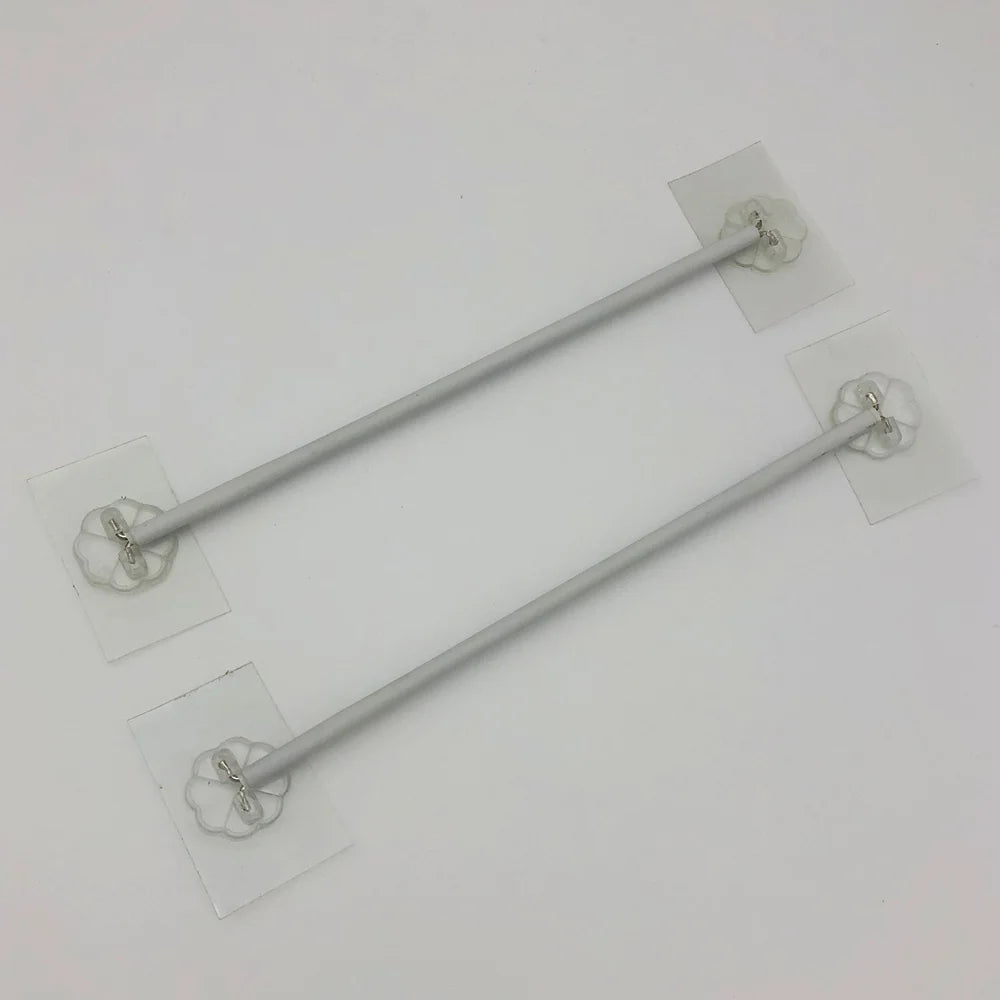

We currently have the Cowl and Wing Strut spare parts, you can click the photo below to buy them:
================================================================
We will send you Photo Manual for Assembly and Attach Cover and Sticker by Email.
===============================================================================================
We offer you 7 options, pls choose from "Color Options" above according to your needs!
1. Kit without Cover (No Cover, No Motor, No Servo, No ESC, No RC, No Battery, No Charger)

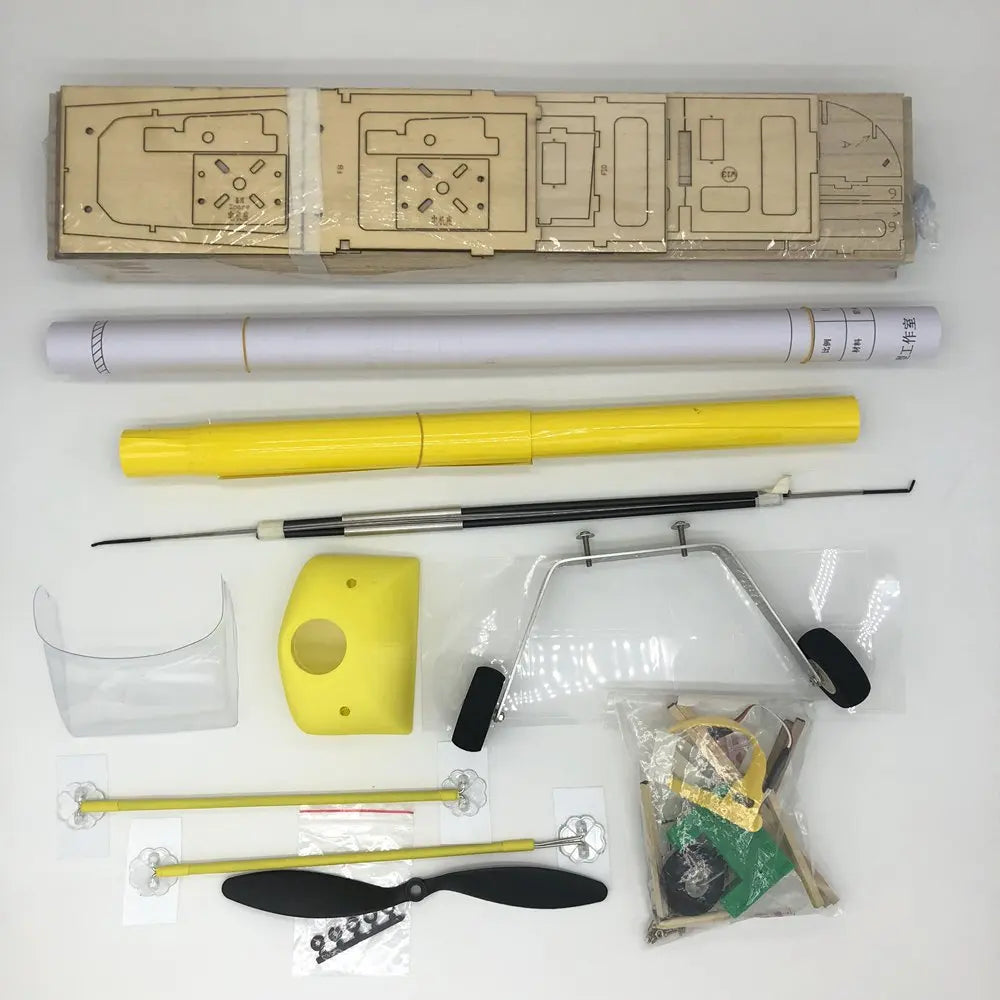

2. Yellow Kit (Not include motor, ESC, servo, RC, Battery, Charger)
3. White kit (Not include motor, ESC, servo, RC, Battery, Charger)
4. Green Kit (Not include motor, ESC, servo, RC, Battery, Charger)

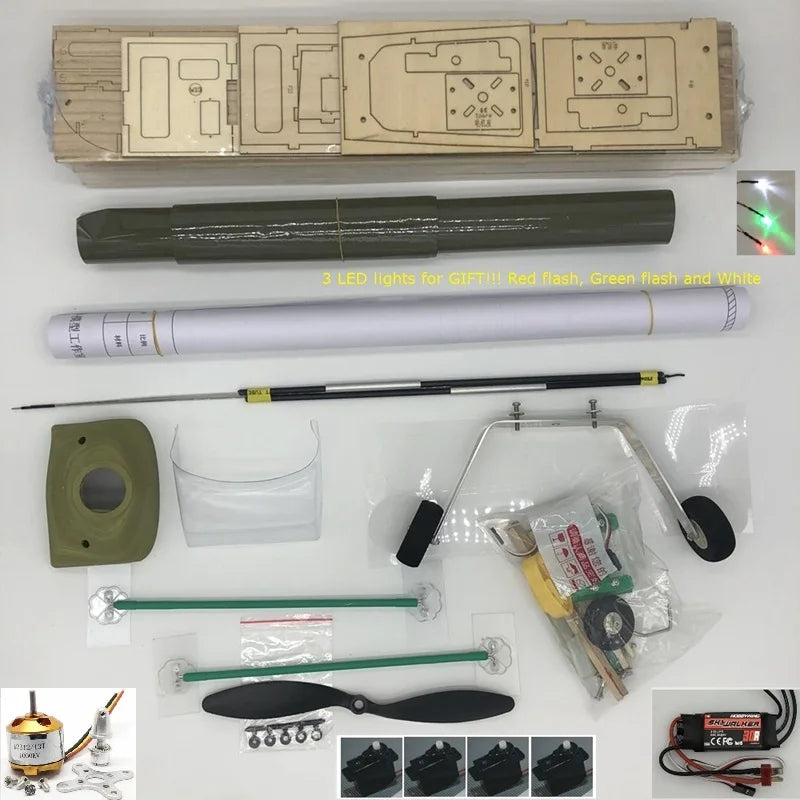

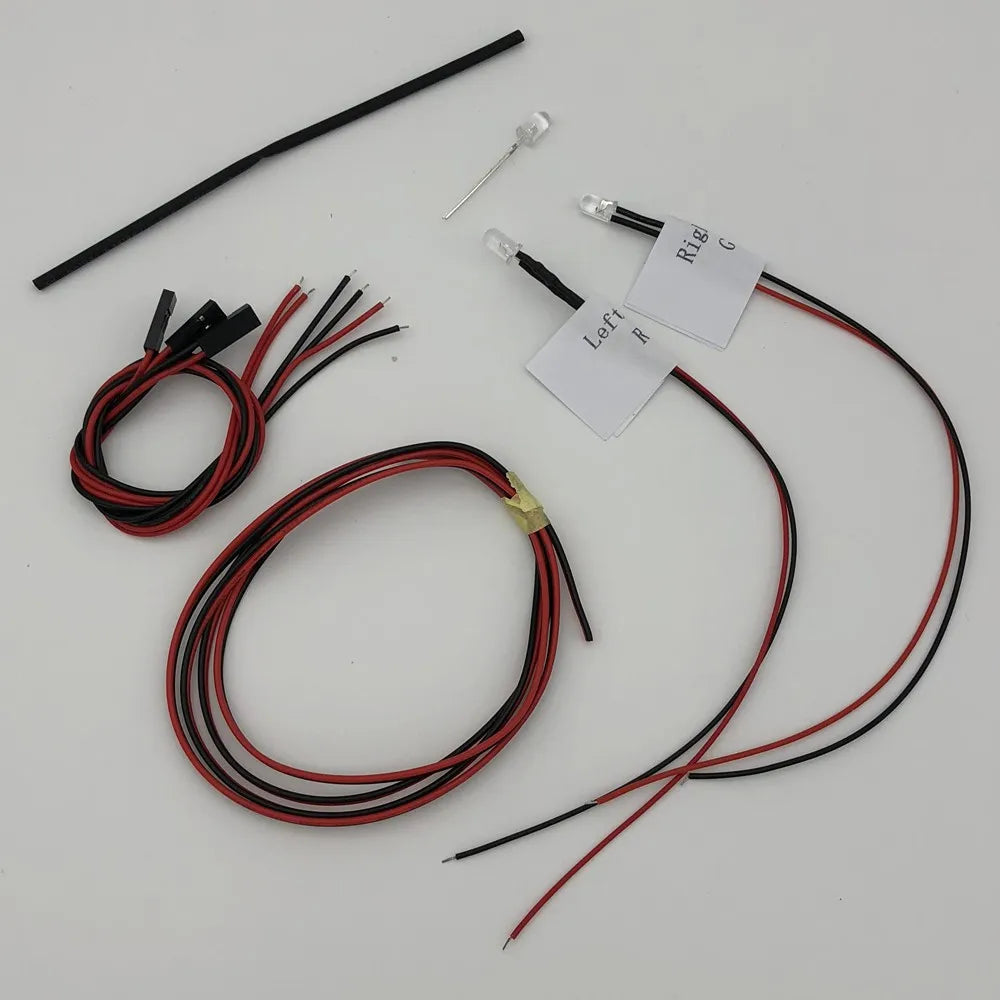

5. Yellow PNP (Not include RC, Battery, Charger) 3 LED lights for GIFT.
6. White PNP (Not include RC, Battery, Charger) 3 LED lights for GIFT.
7. Green PNP (Not include RC, Battery, Charger) 3 LED lights for GIFT.
This is trainer plane Kit, you need to assemble the parts into fuselage, and wings, and finally install them!
We will do our utmost to assist you to enjoy the assembly and flying!
We also offer spare parts for our DIY balsa plane kits.
Just tell us the part no. :-)

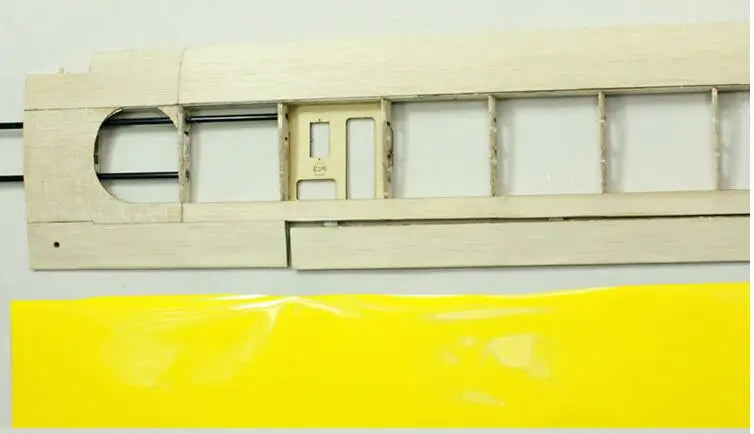

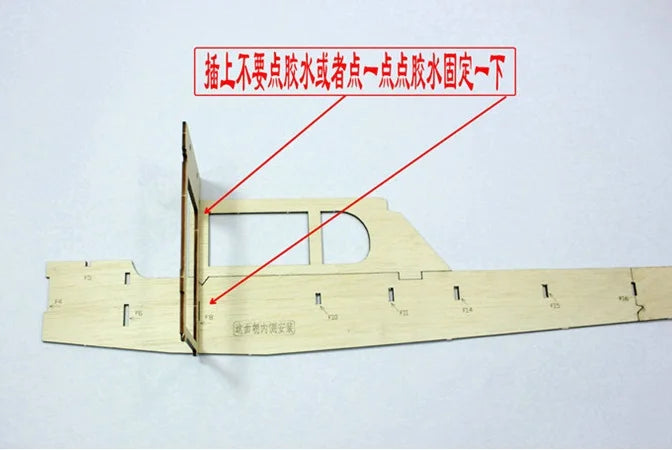

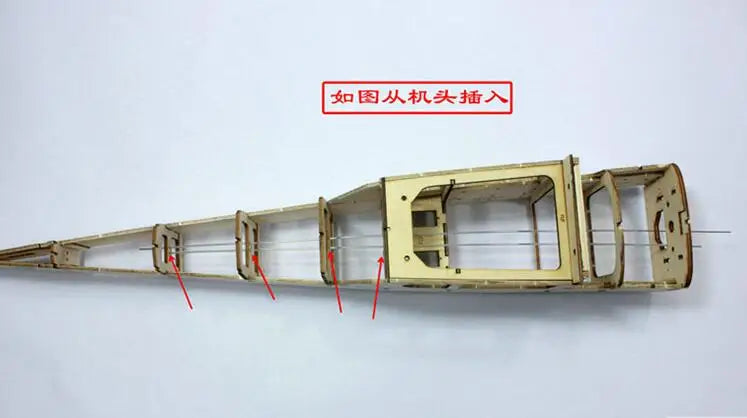

Part of the photo instructions:

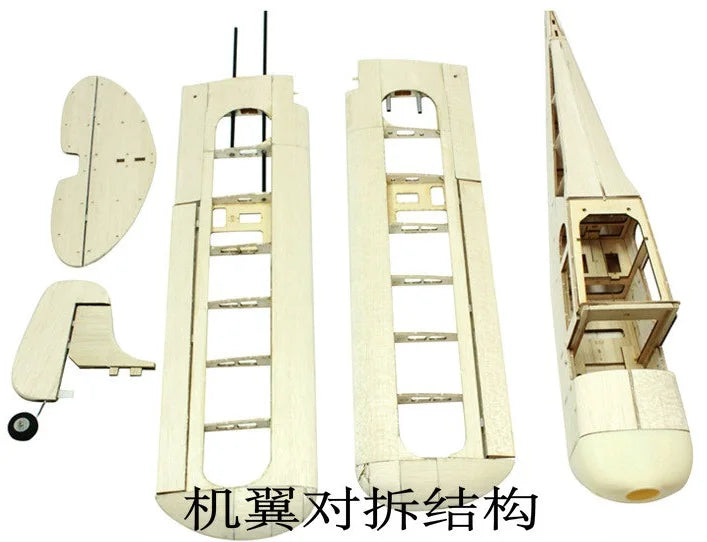

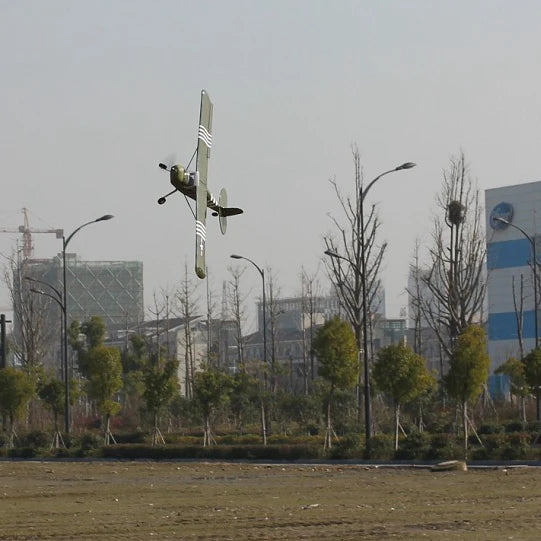

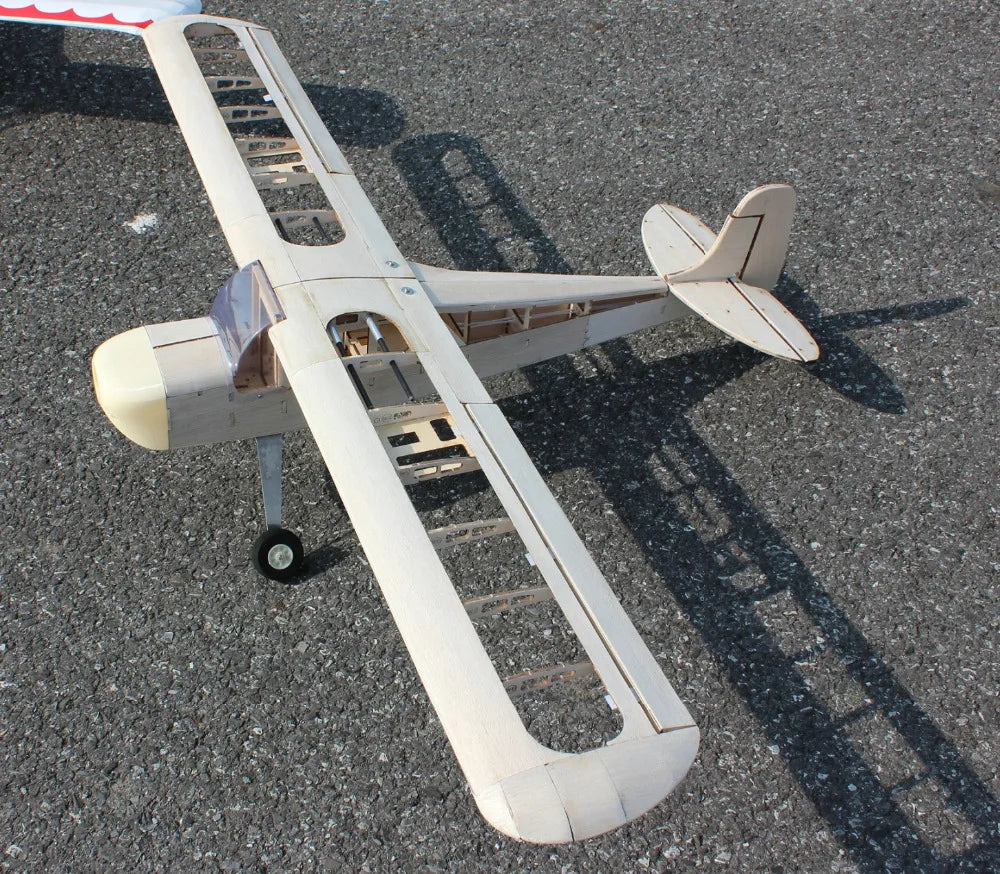

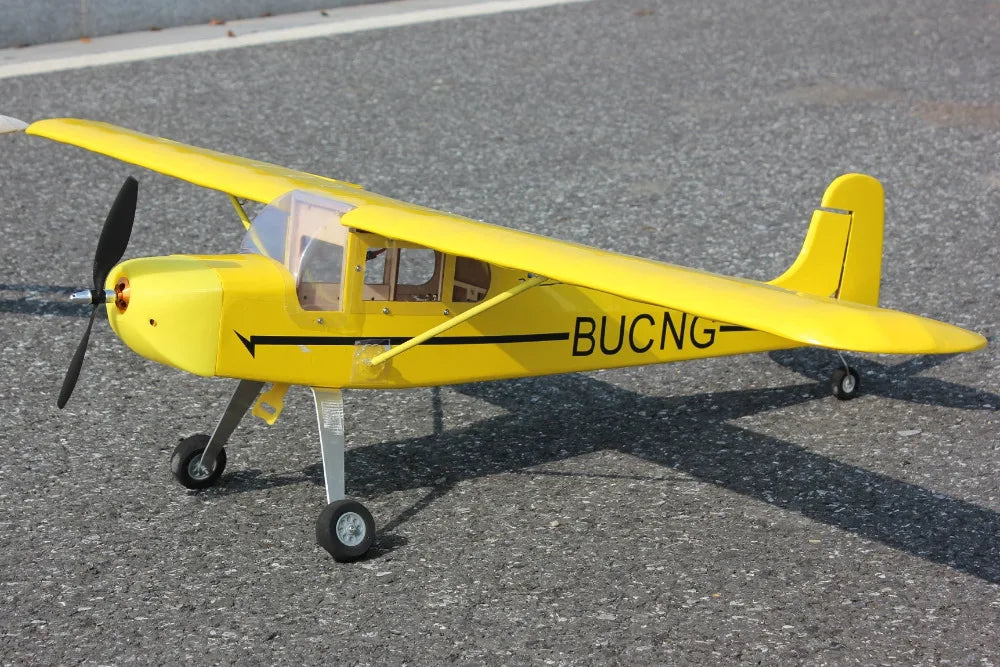

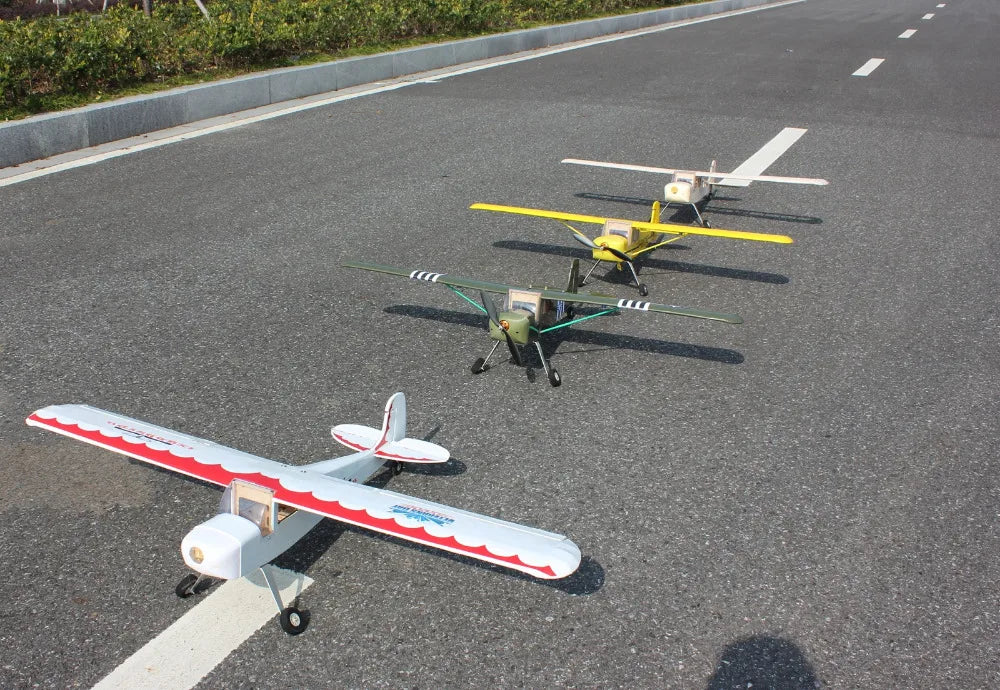

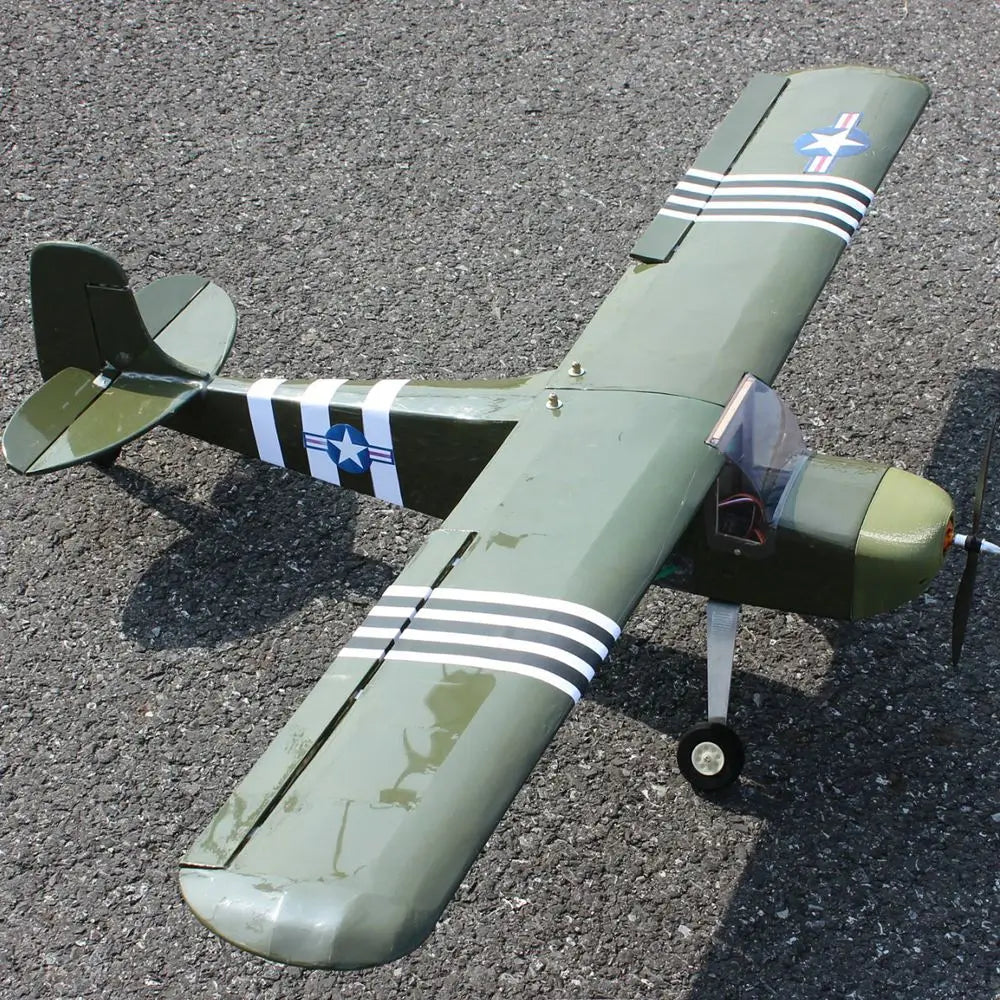

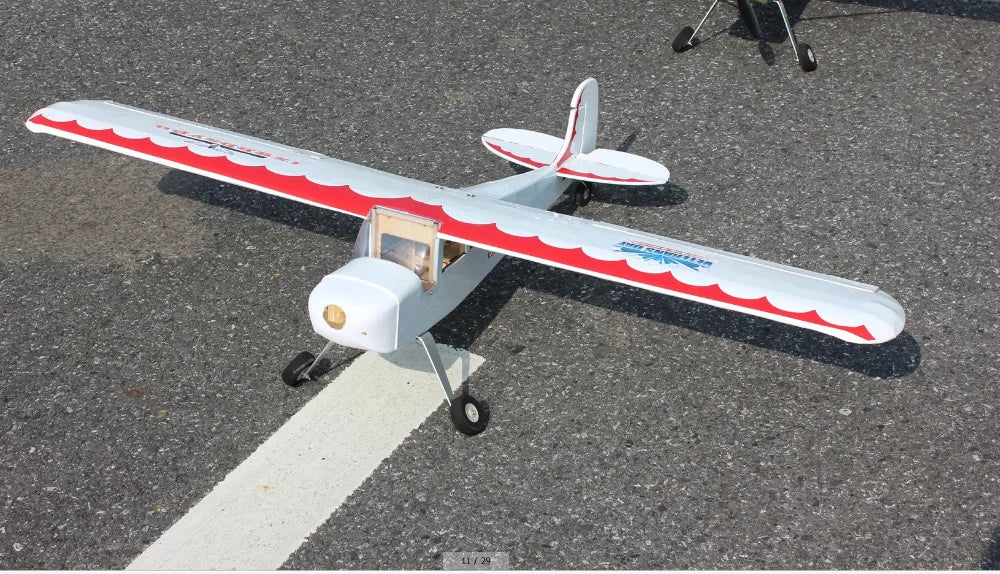

Photos of the J-3 Cub after you assemble it:
